MOD1008-Lite

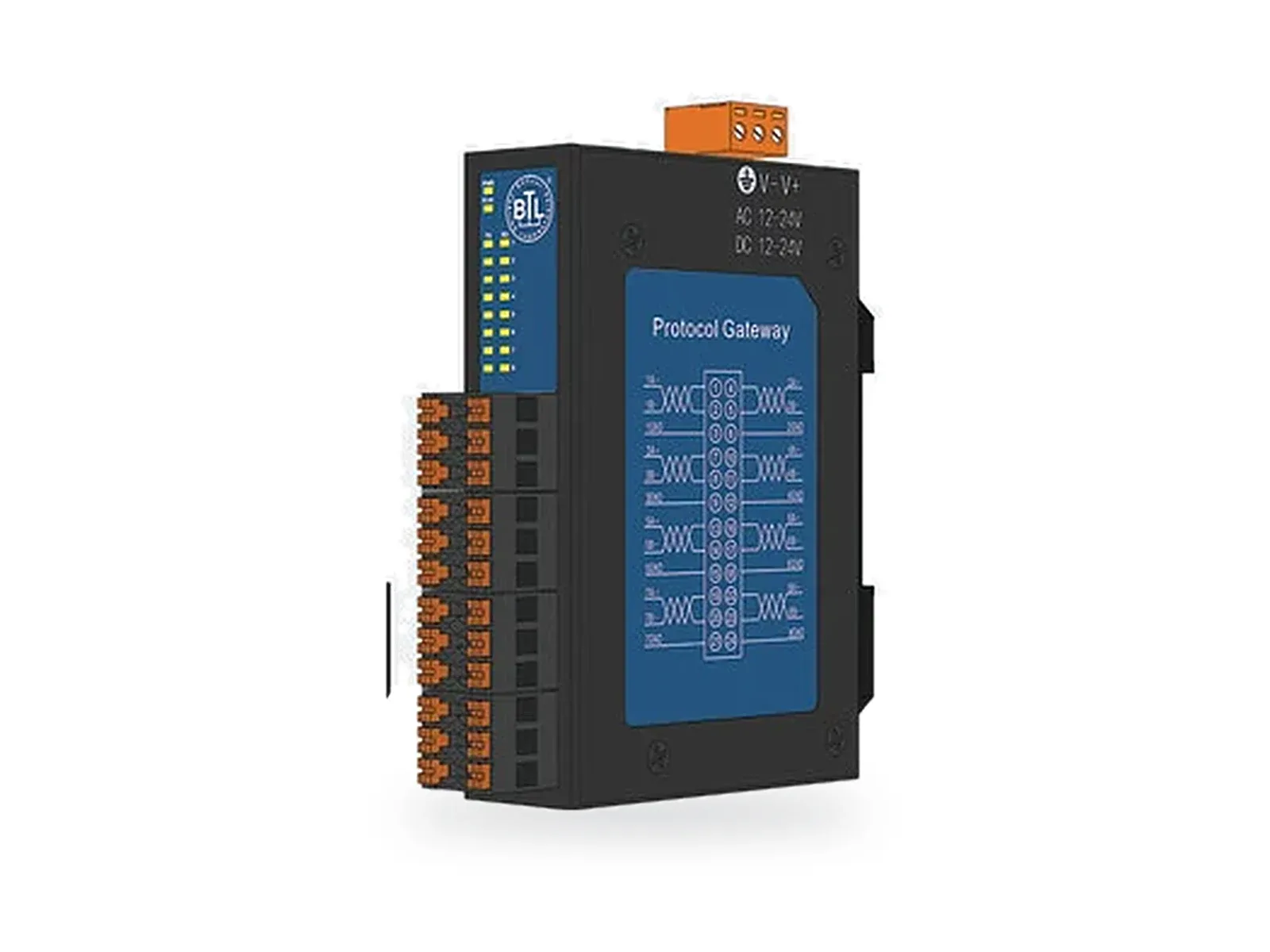

Modbus Gateway (Lite Series) MOD1008-Lite
التقنية الأساسية من Sunfull
Lite Modbus gateway converting Modbus and BACnet devices to Modbus TCP/RTU servers and OPC UA, for projects that do not need the full 500+ protocol library.
Protocol Conversion
Support conversion from Modbus, BACnet to Modbus server and OPC UA.
Register Types
Support 0X, 1X, 3X, 4X four register types.
Multiple Slaves
Support multiple Modbus Slave.
البروتوكولات والأدوار
| البروتوكول | الاتجاه | الدور | الإصدار | الحد الأقصى للأجهزة | الحد الأقصى للنقاط |
|---|---|---|---|---|---|
| Modbus TCP | target | server | - | - | 2048 |
| Modbus RTU | target | server | - | - | 2048 |
| BACnet/IP | source | client | - | - | 2048 |
| BACnet MS/TP | source | client | - | - | 2048 |
| OPC UA | target | server | - | - | 2048 |
المواصفات
general
- Support Protocols
- Modbus, BACnet
- Transfer Protocols
- Modbus TCP, Modbus RTU, OPC UA
- OS
- Linux
- Ethernet Ports
- 1x 100M/1000M NIC
- Serial Ports
- 8x RS485 (Electromagnetic isolation)
mechanical
- Material
- Galvanized Steel
- Dimensions
- 120mm x 100mm x 27mm
- Weight
- 300g
- Installation
- DIN-Rail
environment
- Temperature
- -20C to +70C (working); -30C to +75C (storage and transportation)
- Humidity
- 20% - 90% no condensation (working); 15% - 95% no condensation (storage and transportation)
performance
- Support Tags
- 2048
- CPU
- 1 Core 1GHz
- RAM
- 512M
- Flash
- 4G
power
- Power
- 8W
- Power Supply
- AC/DC 12~24V
التنزيلات
- تنزيل
البرمجيات
X2Modbus configuration software - Modbus gateways (Chinese / English)
English · الإصدار 2026-09-15 · 15/09/2026 · 414.6 MB
